Setting Up A NetSuite Integration - Walk Through

Start Data Connector

  • Click on the "Data" menu item
  • Click on the "Data Hub" menu item

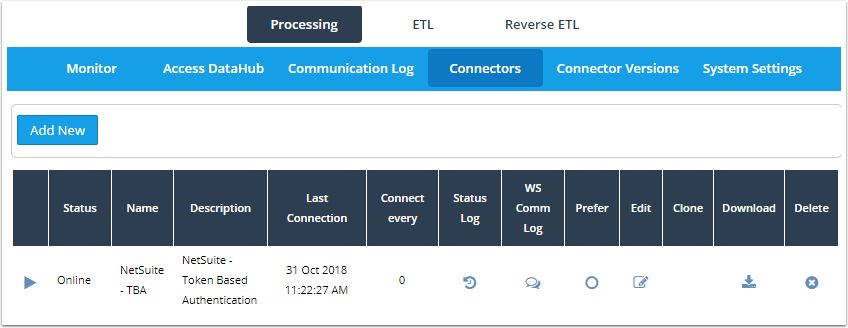

  • Click on the "Connectors" menu item
  • Find the connector you just created in Prerequisite #2
  • Click on the arrow to start the data connector.

Create the Extraction (ETL)

  • Click on the "Data" menu item
  • Click on the "Data Hub" menu item
  • Click on the "ETL" menu item

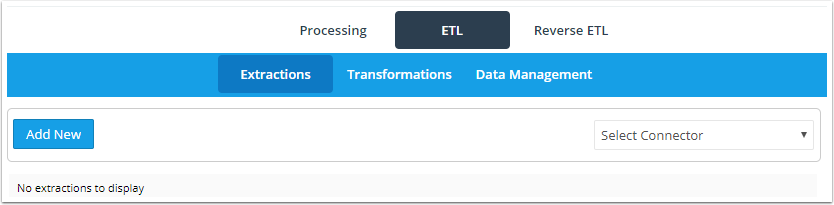

  • Click on the "Add New" button

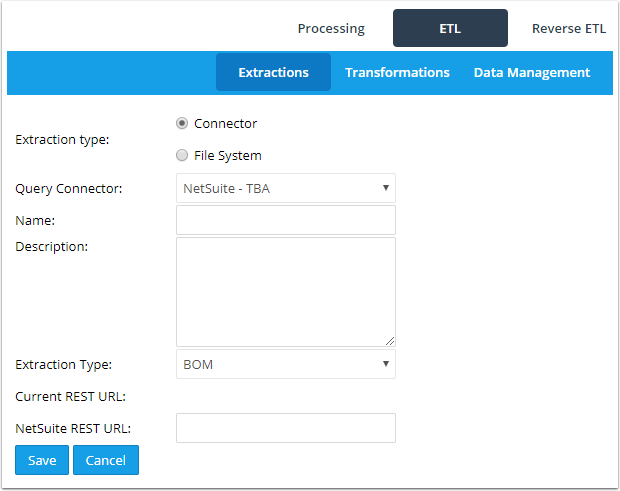

  • On the Extractions Management page you will see something like below, look at the options and then follow the steps.

    Note: You will need the information from Prerequisite #3 in order to fill out this form. There are typically 11 scripts that will get loaded in NetSuite, each of these scripts will need to have an ETL setup.
  • Keep "Extraction type" set at "Connector"
  • Change "Query Connector" as necessary based on the settings you created in Prerequisite #2
  • Set the rest of the fields based on what you recorded in Prerequisite #3 and click the "Save" button for each of the scripts.

    Note: In each of the extractions the NetSuite REST URL will look similar to: https://<AcctID>.restlets.api.netsuite.com/app/site/hosting/restlet.nl?script=<ScriptID>&deploy=1
Name / Description Extraction Type
BOM BOM
Customer
Customers
Customer / Sales Orders
Customer Orders
Item
Item
Item Locations
Item Locations
Product Classes
Product Classes
Shop / Work Order
Shop Orders
Vendor / Purchase Order
Vendor Orders
Vendors
Vendors
Work Center
Work Center

Create the Transformation

  • Click on the "Data" menu item
  • Click on the "Data Hub" menu item
  • Click on the "Transformations" menu item
  • Click on the "Add New" button

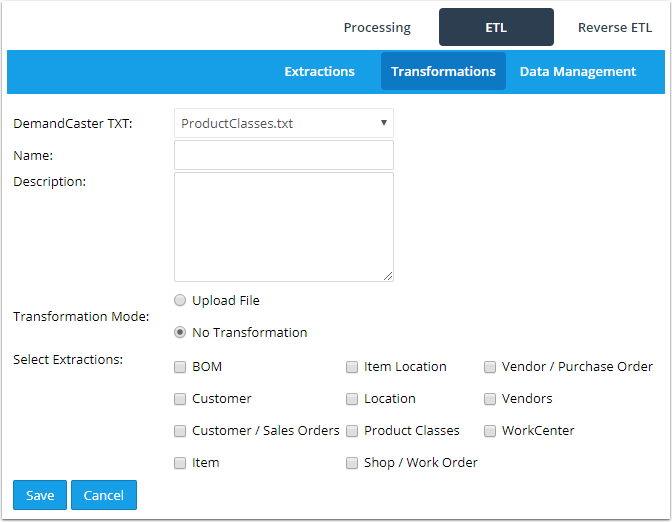

  • On the Transformations Management page you will see something like below, look at the options and then follow the steps.
  • You will notice that the extractions you just finished will be available as check boxes on this form.
  • Similar to the ETL process you will need to fill out the form with the following information, click the "Save" button for each Transformation.
DemandCaster TXT Name / Description / Select Extractions Transformation Mode
Bom.txt BOM No Transformation
Customers.txt
Customers
No Transformation
CustomerOrders.txt
Customer / Sales Orders
No Transformation
Item.txt
Item
No Transformation
ItemLocations.txt
Item Locations
No Transformation
Locations.txt
Locations
No Transformation
ProductClasses.txt
Product Classes
No Transformation
ShopOrders.txt
Shop / Work Orders
No Transformation
VendorOrders.txt
Vendor / Purchase Orders
No Transformation
Vendors.txt
Vendors
No Transformation
WorkCenter.txt Work Center
No Transformation

Create the Data Management Profile

  • Click on the "Data" menu item
  • Click on the "Data Hub" menu item
  • Click on the "Data Management" menu item
  • Click on the "Add New" button
  • On the Data Management page you will see something like below, look at the options and then follow the steps.
  • Similar to the ETLs and Transformations fill out the form with values similar to the list below.
  • Initially you will want to uncheck the "Data Load" checkbox in order to test the data pull.
  • Leave the values on the right side (start types) alone and click on the "Save" button when ready.
Name / Description / Transformation
BOM
Customers
Customer / Sales Orders
Item
Item Locations
Locations
Product Classes
Shop / Work Orders
Vendor / Purchase Orders
Vendors
Work Center

Run the Data Management Profile

  • Click on the "Data" menu item
  • Click on the "Data Hub" menu item
  • Click on the "Data Management" menu item
  • Find the ETL Template Name that you want to run and then look across the screen to the "Run" column and click on the arrow to start the extraction.
